This is my assignment 8 for logic gates.

For this assignment, I am suppose to provide a tutorial for Logic gates. It should describe the six fundamental gates. Also, it must provide a definition for each gate along with the schematic diagram, symbol, boolean equation and the truth table for each.

Logic Gates: performs a logical operation on one or more logic inputs and produces a single logic output. The logic normally performed is Boolean logic and is most commonly found in digital circuits. Logic gates are primarily implemented electronically using diodes or transistors.

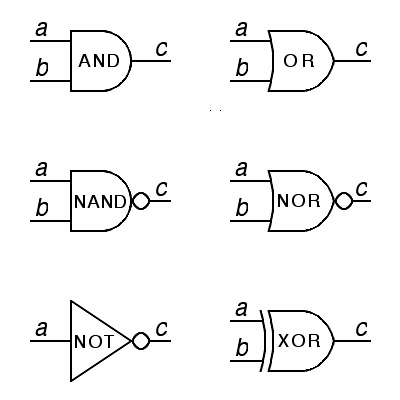

Gates In This Assignment:

- AND GATE
- NAND GATE
- OR GATE
- NOR GATE
- NOT GATE
- EOR GATE
